Systems include a cell culture chamber connected to a gas controller user to control O2 and CO2 levels. Cost effective and ideal for those starting small scale hypoxia experiments.
Features of Bioxia Cell Chamber (CBOX):
- Allows users to simulate Hypoxia/Physoxia/Hyperoxia conditions.
- The O2 and CO2 set points can be reached quickly.
- Simple touchscreen on the Gas controller allows user to change O2 and CO2 levels easily
- Automatic hypoxia cycling programme included.
- The Cell Culture Chamber can be placed in an incubator while the Gas Controller remains outside the incubator. They are connected via the gas tubes and the communications cable.
Technical Specification Of Cell Culture Chamber & Gas Controller:
- Chamber Size, choice of large or small:
- Small (W x H x D in mm): 340 x 300 x 160
- Large (W x H x D in mm): 360 x 300 x 230
- The material of whole shell and shelf is acrylic
- The chamber is connected to a gas controller via a communications cable and gas tubes.
- The O2 and CO2 sensors are installed in the Gas controller.
- A dish of distilled water can be installed in the culture chamber to increase humidity
- Voltage: 230 AC
- Weight: 10Kg
- Certification: CE

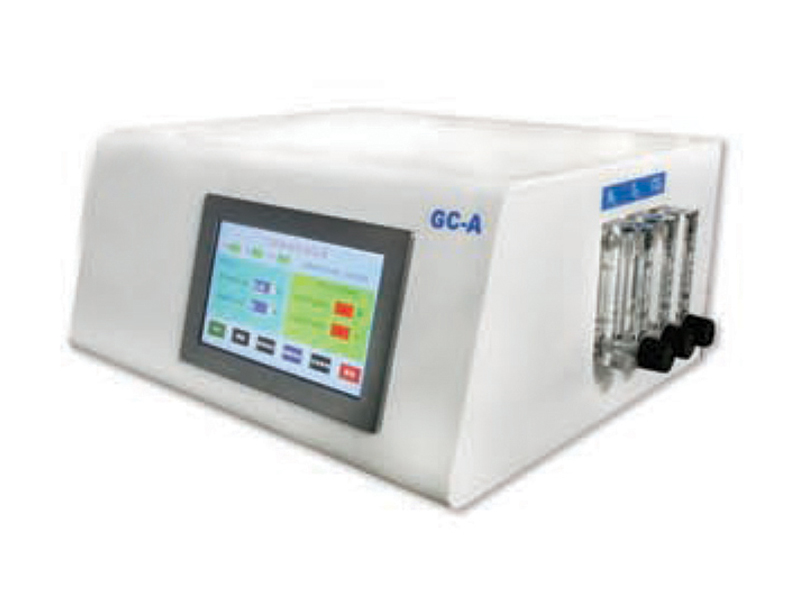

Gas Controller:
- O2 Control: From 0.0 to 25.0% in 0.1% increments
- CO2 control: From 0.0 to 20.0% in 0.1% increments
- Can pre-programme O2 and CO2 cycles in advance
Gallery :
