Anaerobic Workstation
BIOXIA is one of the leading international manufacturers & suppliers of controlled
& modified oxygen Workstations like oxygen free environment (ANOXIA), oxygen less environment
(HYPOXIA) and inert environment (GLOVE BOX).
Anaerobic Workstation 300 / Anaerobox 300
Anaerobox Workstation 300 Ensuring precise and stable anaerobic culture conditions. Engineered for precision, durability, and user-friendly operation, this workstation provides an optimum culture environment for isolation of microaerophilic bacteria in plates, flasks or tubes. The Anaerobox 300 features a capacity of 300 plates.
Features:
- Anaerostation 300 Construction: Crafted from durable, non-corrosive acrylic resin (6mm or 8mm thickness), the entire shell construction ensures longevity. The front panel combines acrylic resin with a transparent sheet for optimal visibility and insulation.
- Forced Purging System: Automatic forced purging systems for the main chamber and interlock chamber, with adjustable purging periods, guaranteeing a controlled, stable environment.
- Safety Measures: The Anaerobox 300 includes a temperature overshoot controller, condensate controller technology, and a pressure relief valve to release excess pressure inside the chamber.
- Temperature Control: A heating element with a controller maintains the chamber's temperature between ambient and 50°C, with temperature uniformity ± 1°C at 37°C. Inbuilt trim points for temperature calibration ensure accuracy.
- User-Friendly Design of Anaerobic Workstation 300: The workstation has an ergonomically friendly viewing panel with a 10% angle, utility port for manual purging, foot switches for chamber operation, gas nozzle ports, and an internal spotlight. Glove ports are easy to use and our gloveless sleeves allow simple direct hand access.
- Additional Features: A touch screen simplifies calibration processes, automatically calibrating the O2 sensor. The Gas Control Software, accessible through an easy to use colour touchscreen. There is also a USB port with a data key containing continuous storage of event log data, one-touch calibration, fault assistance, and cycle programming.
Touchscreen Features
- Displays O2, CO2, temperature and humidity (set points and actual)
- Main Chamber pressure
- Fluorescent Light
- UV Light (if chosen)
- Internal Socket on/off
- Audio & Visual alarm for low or excess oxygen level
- Audio & Visual alarm for gas cylinder pressures, chamber pressure and temperature
- Audio & Visual alarm for Water Level Indicator for excess pressure regulator
Technical Specifications of Anaerobox 300 :
Dimensions: L X D X H (approx. in mm)
| External: |
950 X 700 X 750 |
| Internal: |
600 X 550 X 480 |
| Interlock: |
150 X 200 X 180
|
| Main Workstation Capacity: |
a) Up to 300 Plates-90 X 15 mm petri dishes
b) Additional inoculation space for regular working
c) Two electrical power sockets inside the chamber
|
| Interlock Capacity: |
a) Interlock transfer up to 20 plates of 90mm X 15mm
b) Auto Inter lock cycle
|
| Weight: |
120 kg
|
| Safety Features: |
Excess pressure relief valve
Temperature overshoot controller
|
| Power Input: |
220-240V AC, 50 HZ fitted with plug and resettable
overcurrent breaker fitted for protection
|
| Certificates: |
ISO 9001: 2015 Certified Company
CE Marked: CE marked product
|
Included Features of Anaerobic Workstation 300
- Humidity control (Ambient to 85% Rh)
- Temperature control (Ambient + 5°C to 50°C in 1° C increments)
- Low Gas pressure indicators
- Light control ( tube Light and Spot Light)
- Full width internal shelf ·
- Pair of Gloveless Sleeve ports for direct hand accesss
- Internal power sockets x 2
- Palladium catalyst
- Detox sachet
- Purge pedal
- 2 Petri dish holders
Optional Accessories for Anaerostation 300
- Removable Front Cover
- Internal HEPA to ISO 14644 Class 4 / EU GMP Grade A
- Catalyst Sachet
- Petri plate holders
- Detox sachet
- Pair of Gloves (with leak proof arrangements for access inside the chamber & easy & comfortable handling / operations inside the chamber )
- Jar Filling Unit
- MS Trolley
- Anti Vibration Pad
- Vacuum Line Port
- Cable Gland Port
- Top Cover
- Anaerobic Indicator Strips
- UV Light
- Nitrogen Gas Cylinder with regulator
- Mix Gas Cylinder with regulator
- Cleaning kit
Gallery:

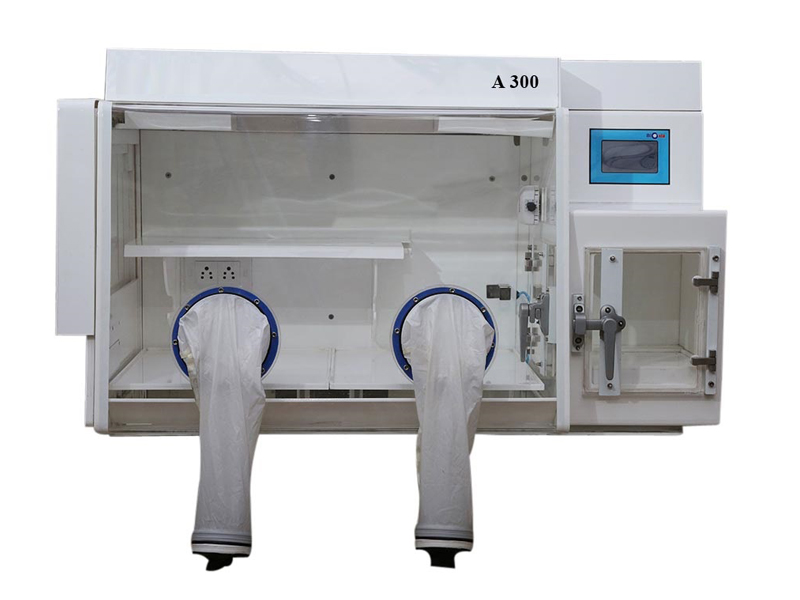

Anaerobox Workstation A-300
Anaerobic Workstation 500 / Anaerobox 500
Anaerobox Workstation 500 Ensuring precise and stable anaerobic culture conditions. Engineered for precision, durability, and user-friendly operation, this workstation provides an optimum culture environment for isolation of microaerophilic bacteria in plates, flasks or tubes. The Anaerobox 500 features a capacity of 650 plates.
Features:
- Anaerostation 500 Construction: Crafted from durable, non-corrosive acrylic resin (6mm or 8mm thickness), the entire shell construction ensures longevity. The front panel combines acrylic resin with a transparent sheet for optimal visibility and insulation.
- Forced Purging System: Automatic forced purging systems for the main chamber and interlock chamber, with adjustable purging periods, guaranteeing a controlled, stable environment.
- Safety Measures: The Anaerobox 500 includes a temperature overshoot controller, condensate controller technology, and a pressure relief valve to release excess pressure inside the chamber.
- Temperature Control: A heating element with a controller maintains the chamber's temperature between ambient and 50°C, with temperature uniformity ± 1°C at 37°C. Inbuilt trim points for temperature calibration ensure accuracy.
- User-Friendly Design of Anaerobic Workstation 500: The workstation has an ergonomically friendly viewing panel with a 10% angle, utility port for manual purging, foot switches for chamber operation, gas nozzle ports, and an internal spotlight. Glove ports are easy to use and our gloveless sleeves allow simple direct hand access.
- Additional Features: A touch screen simplifies calibration processes, automatically calibrating the O2 sensor. The Gas Control Software, accessible through an easy to use colour touchscreen. There is also a USB port with a data key containing continuous storage of event log data, one-touch calibration, fault assistance, and cycle programming.
Touchscreen Features
- Displays O2, CO2, temperature and humidity (set points and actual)
- Main Chamber pressure
- Fluorescent Light
- UV Light (if chosen)
- Internal Socket on/off
- Audio & Visual alarm for low or excess oxygen level
- Audio & Visual alarm for gas cylinder pressures, chamber pressure and temperature
- Audio & Visual alarm for Water Level Indicator for excess pressure regulator
Technical Specifications of Anaerobox 500:
Dimensions: L X D X H (approx. in mm)
| External: |
1350 X 720 X 770 |
| Internal: |
900 X 560 X 480 |
| Interlock: |
200 X 240 X 230
|
| Main Workstation Capacity: |
a)Up to 650 Plates-90 X 15 mm petri dishes
b) Additional inoculation space for regular working
c) Four electrical power sockets inside the chamber
|
| Interlock Capacity: |
a)Interlock transfer up to 30 plates of 90mm X 15mm
b) Auto Inter lock cycle
|
| Weight: |
140 kg
|
| Safety Features: |
Excess pressure relief valve
Temperature overshoot controller
|
| Power Input: |
220-240V AC, 50 HZ fitted with plug and resettable
overcurrent breaker fitted for protection
|
| Certificates: |
ISO 9001: 2015 Certified Company
CE Marked: CE marked product
|
Included Features of Anaerobic Workstation 500
- Humidity control (Ambient to 85% Rh)
- Temperature control (Ambient + 5°C to 50°C in 1° C increments)
- Low Gas pressure indicators
- Light control ( tube Light and Spot Light)
- Full width internal shelf ·
- Pair of Gloveless Sleeve ports for direct hand accesss
- Internal power sockets x 4
- Palladium catalyst
- Detox sachet
- Purge pedal
- 2 Petri dish holders
Optional Accessories for Anaerostation 500
- Removable Front Cover
- Internal HEPA to ISO 14644 Class 4 / EU GMP Grade A
- Catalyst Sachet
- Petri plate holders
- Detox sachet
- Pair of Gloves (with leak proof arrangements for access inside the chamber & easy & comfortable handling / operations inside the chamber )
- Jar Filling Unit
- MS Trolley
- Anti Vibration Pad
- Vacuum Line Port
- Cable Gland Port
- Top Cover
- Anaerobic Indicator Strips
- UV Light
- Nitrogen Gas Cylinder with regulator
- Mix Gas Cylinder with regulator
- Cleaning kit
Gallery:

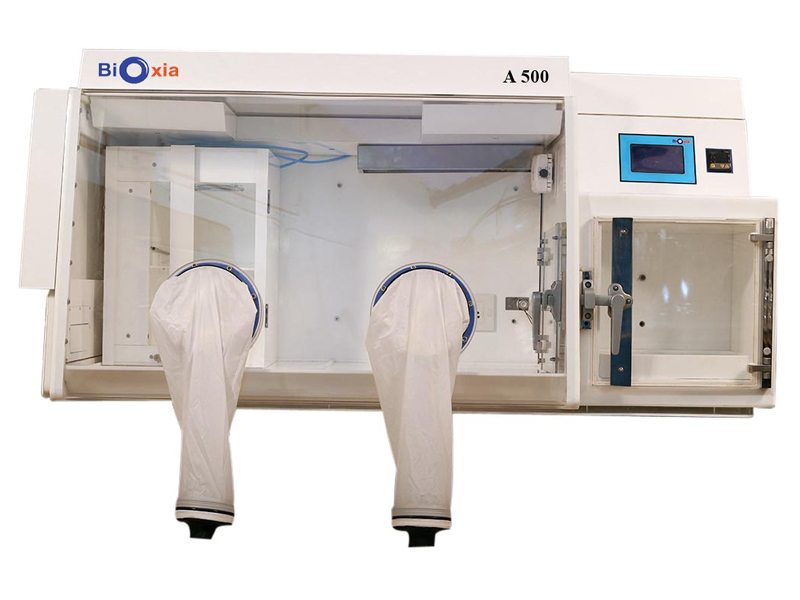

Anaerobox Workstation A-500
Anaerobic Workstation 800 / Anaerobox 800
Anaerobox Workstation 800 Ensuring precise and stable anaerobic culture conditions. Engineered for precision, durability, and user-friendly operation, this workstation provides an optimum culture environment for isolation of microaerophilic bacteria in plates, flasks or tubes. The Anaerobox 800 features a capacity of 850 plates.
Features:
- Anaerostation 800 Construction: Crafted from durable, non-corrosive acrylic resin (6mm or 8mm thickness), the entire shell construction ensures longevity. The front panel combines acrylic resin with a transparent sheet for optimal visibility and insulation.
- Forced Purging System: Automatic forced purging systems for the main chamber and interlock chamber, with adjustable purging periods, guaranteeing a controlled, stable environment.
- Safety Measures: The Anaerobox 800 includes a temperature overshoot controller, condensate controller technology, and a pressure relief valve to release excess pressure inside the chamber.
- Temperature Control: A heating element with a controller maintains the chamber's temperature between ambient and 50°C, with temperature uniformity ± 1°C at 37°C. Inbuilt trim points for temperature calibration ensure accuracy.
- User-Friendly Design of Anaerobic Workstation 800: The workstation has an ergonomically friendly viewing panel with a 10% angle, utility port for manual purging, foot switches for chamber operation, gas nozzle ports, and an internal spotlight. Glove ports are easy to use and our gloveless sleeves allow simple direct hand access.
- Additional Features: A touch screen simplifies calibration processes, automatically calibrating the O2 sensor. The Gas Control Software, accessible through an easy to use colour touchscreen. There is also a USB port with a data key containing continuous storage of event log data, one-touch calibration, fault assistance, and cycle programming.
Touchscreen Features
- Displays O2, CO2, temperature and humidity (set points and actual)
- Main Chamber pressure
- Fluorescent Light
- UV Light (if chosen)
- Internal Socket on/off
- Audio & Visual alarm for low or excess oxygen level
- Audio & Visual alarm for gas cylinder pressures, chamber pressure and temperature
- Audio & Visual alarm for Water Level Indicator for excess pressure regulator
Technical Specifications of Anaerobox 800:
Dimensions: L X D X H (approx. in mm)
| External: |
1640 X 720 X 770
|
| Internal: |
1200 X 560 X 480 |
| Interlock: |
200 X 240 X 230
|
| Main Workstation Capacity: |
a)Up to 850 Plates-90 X 15 mm petri dishes
b) Additional inoculation space for regular working
c) Four electrical power sockets inside the chamber
|
| Interlock Capacity: |
a) Interlock transfer up to 30 plates of 90mm X 15mm
b) Auto Inter lock cycle
|
| Weight: |
165 kg
|
| Safety Features: |
Excess pressure relief valve
Temperature overshoot controller
|
| Power Input: |
220-240V AC, 50 HZ fitted with plug and resettable
overcurrent breaker fitted for protection
|
| Certificates : |
ISO 9001: 2015 Certified Company
CE Marked: CE marked product
|
Included Features of Anaerobic Workstation 800
- Humidity control (Ambient to 85% Rh)
- Temperature control (Ambient + 5°C to 50°C in 1° C increments)
- Low Gas pressure indicators
- Light control ( tube Light and Spot Light)
- Full width internal shelf
- Three Gloveless Sleeve ports for direct hand access
- Internal power sockets x 4
- Palladium catalyst
- Detox sachet
- Purge pedal
- 2 Petri dish holders
Optional Accessories for Anaerostation 800
- Removable Front Cover
- Internal HEPA to ISO 14644 Class 4 / EU GMP Grade A
- Catalyst Sachet
- Petri plate holders
- Detox sachet
- Pair of Gloves (with leak proof arrangements for access inside the chamber & easy & comfortable handling / operations inside the chamber )
- Jar Filling Unit
- MS Trolley
- Anti Vibration Pad
- Vacuum Line Port
- Cable Gland Port
- Top Cover
- Anaerobic Indicator Strips
- UV Light
- Nitrogen Gas Cylinder with regulator
- Mix Gas Cylinder with regulator
- Cleaning kit
Gallery:

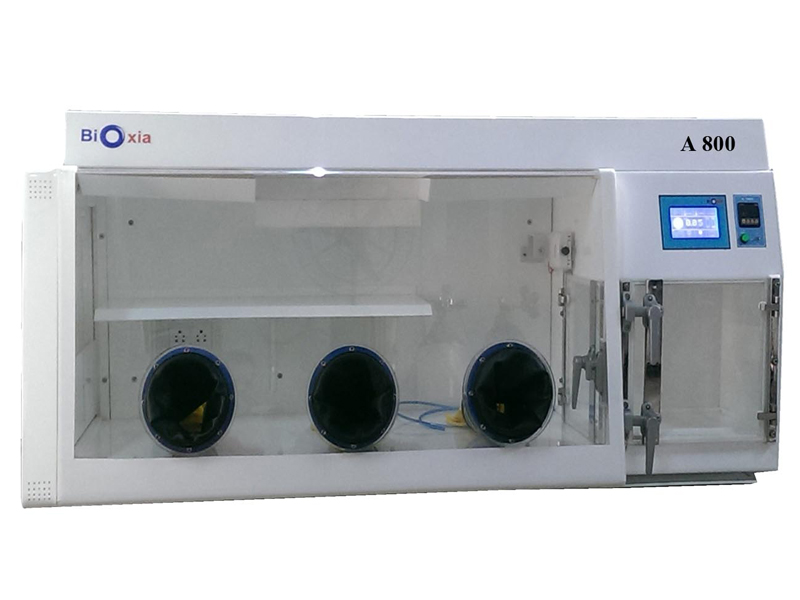

Anaerobox Workstation A-800
